PIEZOELECTRIC VACUUM ENCAPSULATED AND SEALED RESONATOR RL587-МI5

Piezoelectric vacuum encapsulated and sealed resonator manufactured as per KPGF.433513.078 TU (MI5 package)

Basic parameters

Nominal frequency range, MHz 7 - 400
LWH, mm 7,8х3,2х6
Type of mounting THT (Through-Hole Technology)
Quality category QCD (Quality Control Dept)

Number and pin assignment

1, 2 Resonator pad

Item added to cart

Overrall dimensions

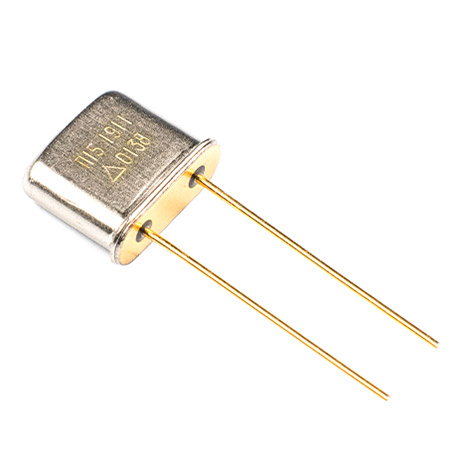

Appearance

Model identification code: RL587-МI5-9DX-30М3 KPGF.433513.078 TU

Resonator type	RL587
Package type	MI5
Calibration tolerance	9
Operating temperature range	D
Temperature stability	Kh
Nominal frequency, MHz	30M
Overtone order	3

Calibration tolerance, х10^-6

± 50	(9)
± 75	(10)
± 100	(11)

Impact resistance to external factors action

Impact resistance to external factors action	M6 Group, GOST 23546
Climatic impact resistance	UKhL 1.1 and В4 cat. GOST 23546
γ-percentile failure runtime at γ = 95 % within 20 years of service life under normal operating conditions (at 85 ˚С ambient temperature) not less than 25 000 h.
γ-percentile storageability time – min. 25 years at γ = 95 %

Notes:

1. Resonators RL587 in МI1 and МI5 packages are vacuum encapsulated; in SMD7 and SMD5 packages are sealed. 2. Identification of resonators with plates, which have reverse mesostructure, is the same as ones without such mesostructured have (1st overtone order without identification, 3rd overtone order specifies by «3» after «М» letter). 3. Resonator parameters can be modified to meet Customer’s specific requirements. 4. Resonator pads are tinned in MN, МR, ММ packages and gold-plated in МI1, МI5, МI4 packages.

Electrical parameter

Nominal frequency range, MHz	Overtone order	Equivalent series resistance of the following packages, Ohm, max
» 7 » 8 »	1 (not indicated)	85
» 8 » 10 »		50
» 10 » 14 »		30
» 14 » 17 »		25
» 17 » 30 »		25
30 to 90 incl.	3	55
30 to 135 incl.	1 (reverse mesostructure)	40
90 to 400 incl.	3 (reverse mesostructure)	80

Temperature stability

Operating temperature range, ˚С	Relative change of the operating frequency at operating temperature, х10^-6
Operating temperature range, ˚С	± 50 (U)	± 100 (Kh)	± 150 (Ts)	± 200 (Ch)	± 300 (Sh)	± 600 (Sch)
0…+45 (L)	+	+	+	+	+	+
0…+50 (M)	+	+	+	+	+	+
-10…+60 (A)	+	+	+	+	+	+
-20…+70 (P)	+	+	+	+	+	+
-25…+55 (R)	+	+	+	+	+	+
-30…+60 (B)	+	+	+	+	+	+
-40…+55 (V1)	+	+	+	+	+	+
-40…+70 (V)	+	+	+	+	+	+
-40…+85 (S)	+	+	+	+	+	+
-60…+70 (G)	+	+	+	+	+	+
-60…+85 (D)	+	+	+	+	+	+

Piezoelectric resonator
