PIEZOELECTRIC SEALED RESONATOR RK419T-MN

PIEZOELECTRIC SEALED RESONATOR RK419T-MN

Piezoelectric sealed resonator manufactured as per KZhDG.433513.011 TU-D2 (МN package)

Basic parameters

  • Nominal frequency range, MHz 9,2 - 13
  • LWH, mm 7,2х2,8х7
  • Type of mounting THT (Through-Hole Technology)
  • Quality category QCD (Quality Control Dept)

Number and pin assignment

  • 1, 2 Resonator pad
close

Item added to cart

Overrall dimensions

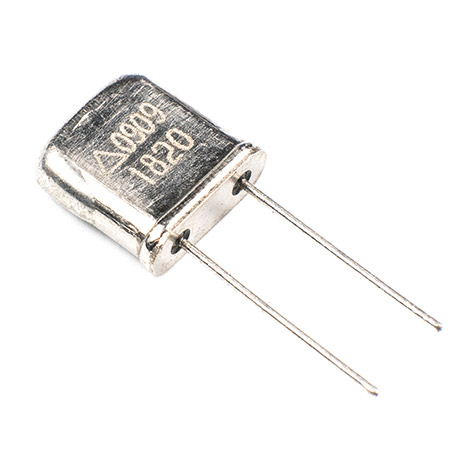

Appearance

RK419T-MN - Dimensions
RK419T-MN
close RK419T-MN

Model identification code: RK419ТМN-6МI/BP-10000К KZHDG.433513.011 TU-D2

Resonator type RK419T
Package type MN
Calibration tolerance 6
Operating temperature range M
Temperature stability I
Operating temperature range B
Temperature stability P
Nominal frequency, kHz 10000К

Calibration tolerance, х10-6

± 5 (4)
± 10 (5)
± 15 (6)
± 20 (7)

Impact resistance to external factors action

Impact resistance to external factors action M6 Group, GOST 23546
Climatic impact resistance UKhL 1.1 and В4 cat. GOST 23546
Failure rate under normal climatic conditions within runtime of 50 000 h. greater than 2х10-7
γ-percentile storageability time – min. 25 years at γ = 95 %

Notes:

1. Resonator parameters can be modified to meet Customer’s specific requirements. 2. Resonator pads are tinned.

Electrical parameter

Nominal frequency range, kHz Overtone order Dynamic resistance, Ohm, max
9200 to 10000 1 50
over 10000 to 13000

Temperature stability

Operating temperature range, ˚С Temperature stability, х10-6
± 2,5 (Zh) ± 3 (I) ± 5 (K) ± 7,5 (L) ± 10 (M) ± 15 (N) ± 20 (P) ± 25 (R) ± 30 (S)
0…+50 (M) + + + + + + + + +
-10…+60 (A) - + + + + + + + +
-25…+55 (R) - - + + + + + + +
-30…+60 (B) - - - + + + + + +
-40…+70 (V) - - - - + + + + +
-50…+70 (G1) - - - - - + + + +
Note: resonator’s characteristics may vary depend of operating temperature range; in the model identification those ranges specifies divided by slash, starting from narrowest one.
Operating temperature range, ˚С ± 2,5/ ± 15,0 ± 3,0/ ± 15,0 ± 2,5/ ± 20,0 ± 2,5/ ± 25,0 ± 3,0/ ± 20,0 ± 3,0/ ± 25,0 ± 3,0/ ± 30,0
0…+50/-30…+60 + + + + + + +
0…+50/-40…+70 - - + + + + +
0…+50/-50…+70 - - - + - - +

Piezoelectric resonator
