PIEZOELECTRIC OSCILLATOR GK82-P2

PIEZOELECTRIC OSCILLATOR GK82-P2

Piezoelectric crystal oscillator GK82-P2 manufactured as per KPGF.433526.004 TU, DIL-14 package

Basic parameters

  • Nominal frequency range, MHz 40 to 160
  • LWH, mm 20,3x12,6x4,8
  • Interconnection technique PCD pad mounting
  • Waveform CMOS
  • Quality category “QCD”

Number and pin assignment

  • 1 Disabled
  • 7 General
  • 8 Out
  • 14 + Us
close

Item added to cart

Overrall dimensions

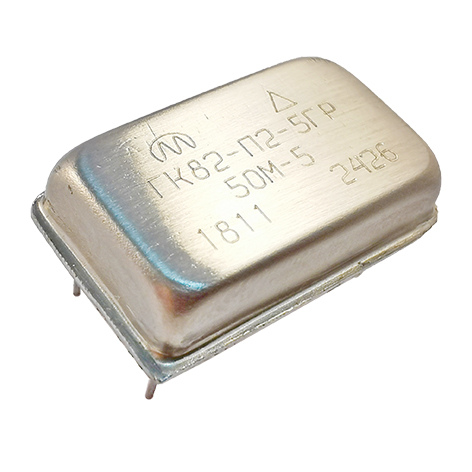

Appearance

GK82-P2 - Dimensions
GK82-P2
close GK82-P2

Model identification code: GK82-P2-5KR-60.5M-5 KPGF.433526.004 TU

Oscillator type GK82-P2
Adjustment accuracy 5
Operating temperature range К
Temperature instability of frequency within operating temperature range R
Nominal frequency, MHz 60,5М
Supply voltage, V 5

Electrical parameter

Parameter Value
Nominal frequency range, MHz
for 5 V power supply 40 to 160
for 3,3 V power supply 40 to 100
Load capacitance 10 Schottky TTL, 15 pF (CMOS)
Output logic:
0’ level, V max:
CMOS 0,1 Us
Schottky TTL 0,2 Us
‘1’ level, V min:
CMOS 0,9 Us
Schottky TTL 0,8 Us
Pulse ratio, % max. 50 ± 10
Rise/fall time, ns, max:
for supply voltage 5 V 3,3
for supply voltage 3.3 V 5
Supply voltage, V 5 ± 10 %; 3,3 ± 10 %;
Stabilization time, ms, max. 5
Voltage coefficient, ×10-6, max:
for supply voltage 5 V ± 6
for supply voltage 3.3 V ± 3
Load coefficient, ×10-6, max. ± 1
Supply current, mA, max:
for supply voltage 5 V:
fnom 40 up to incl. 80 MHz 25
fnom over 80 MHZ 35
for supply voltage 3.3 V:
fnom 40 up to incl. 80 MHz 14
fnom over 80 MHZ 20

Adjustment accuracy, х10-6

± 10 (5)
± 15 (6)
± 20 (7)
± 50 (9)
± 100 (11)

Environmental resistance

Parameter Value
Sinusoidal vibration
Frequency range, Hz 1-500
Acceleration amplitude, g 10
Single mechanical shock
Shock acceleration peak value, g 150
Repeated mechanical shock
Shock acceleration peak value, g 40
Ambient temperature limit, ˚С
low - 60
high + 85
Increased humidity of the air
Relative humidity at 25˚С, % 98
Leak-proof construction

Notes:

Specifications of oscillators can be modified to meet Customer’s specific requirements.

Operating temperature range

Operating temperature range, ˚С Temperature instability of frequency within operating temperature range, х10-6
± 10 (М) ± 15 (N) ± 20 (P) ± 25 (R) ± 30 (S) ± 50 (U) ± 75 (W) ± 100 (Kh)
0…+45 (L) + + + + + + + +
0…+70 (К) + + + + + + + +
- 10…+60 (А) + + + + + + + +
- 25…+55 (R) - + + + + + + +
- 30…+60 (B) - + + + + + + +
- 40…+70 (V) - + + + + + + +
- 40…+85 (S) - - - + + + + +
- 60…+85 (G) - - - + + + + +
