VOLTAGE CONTROLLED PIEZOELECTRIC CRYSTAL OSCILLATOR GK383-UN-01-S

VOLTAGE CONTROLLED PIEZOELECTRIC CRYSTAL OSCILLATOR GK383-UN-01-S

Voltage controlled piezoelectric crystal oscillator GK383-UN-01-S manufactured as per KPGF.433533.076 TU (12.7x12.7x6.0 mm package)

Basic parameters

  • Nominal frequency range, MHz 2 - 4 000
  • LWH, mm 12,7х12,7х6
  • Type of mounting SMD (Surface mounted device / Surface mounting)
  • Waveform Sine
  • Quality category QCD (Quality Control Dept)

Number and pin assignment

  • 1 Control voltage
  • 2 Output
  • 3 Power supply
  • 4-18 General
close

Item added to cart

Overrall dimensions

Appearance

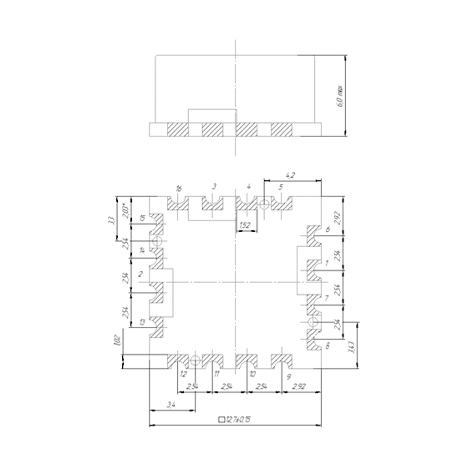

GK383-UN-01-S - Dimensions
GK383-UN-01-S
close GK383-UN-01-S

Model identification code: GK383-UN-01-S-7-15GR-А3-100М-5 KPGF.433533.076 TU

Oscillator type GK383-UN-01-S
Frequency tuning 7
Calibration tolerance 15
Operating temperature range G
Temperature stability R
Load resistance А
Spurious resonance rejection 3
Nominal frequency, MHz 100М
Supply voltage 5

Electrical parameter

Parameter Value
Nominal frequency range, MHz 2 - 4 000
Output Sine
Output parameters:
Peak-to-peak voltage, V, min:
fnom ≤ 250 MHz 0,8
fnom > 250 MHz 0,5
Control voltage, V 0…Us
Supply voltage, V 3,3 ± 5%; 5,0 ± 5%;
Control nonlinearity, % (min) ± 10
Spectral density of phase noise at 10 kHz offset, dB/Hz, max -110…-150
Load coefficient ± 5 %, ×10-6, max ± 5
Supply current, mA, max:
fnom ≤ 1 300 MHz 30
fnom > 1 300 MHz 40

Frequency tuning, х10-6

± 20 (1)
± 50 (2)
± 80 (3)
± 100 (4)
± 120 (5)
± 150 (6)
± 180 (7)
± 200 (8)
± 250 (9)
± 300 (10)
± 500 (11)
± 750 (12)
± 1 000 (13)
± 1 250 (14)
± 26 000 (15)

Calibration tolerance, х10-6

± 5 (11)
± 7,5 (12)
± 10 (13)
± 15 (14)
± 20 (15)
± 30 (16)
± 50 (20)

Load capacitance

10±20% kOhm, 10±20% pF No sign
50 Ohm (А)
1 kOhm (B)
5 kOhm (V)

Spurious resonance rejection, dB

Not rated (1)
-20 (2)
-30 (3)
-40 (4)

Impact resistance to external factors action

Parameter Value
Mechanical impact resistance М6 Group, GOST 25467
Climatic impact resistance UKhL 1.1 cat., GOST 25467
γ-percentile time to failure at γ = 95 % under standard operating conditions (at ambient temperature of 85 °С) for min. 20 000 h within 15 years of service life
γ-percentile storageability time – min. 15 years with γ = 95 %

Notes:

Specifications can be modified to meet Customer’s specific requirements.

Temperature stability

Operating temperature range, ˚С Temperature stability , х10-6
± 5
(Zh)		 ± 10
(I)		 ± 15
(K)		 ± 20
(L)		 ± 25
(M)		 ± 30
(N)		 ± 40
(P)		 ± 50
(R)		 ± 80
(R1)		 ± 100
(S)		 ± 150
(S1)		 ± 200
(S2)
0…+50 (L) + + + + + + + + + + + +
0…+70 (K) + + + + + + + + + + + +
-10…+50 (M) + + + + + + + + + + + +
-10…+60 (A) + + + + + + + + + + + +
-10…+70 (N) - + + + + + + + + + + +
-30…+60 (E) - - + + + + + + + + + +
-30…+70 (P) - - + + + + + + + + + +
-30…+85 (R) - - + + + + + + + + + +
-40...+70 (B) - - - + + + + + + + + +
-40…+85 (S) - - - + + + + + + + + +
-50…+70 (V1) - - - - + + + + + + + +
-60…+70 (V) - - - - - - + + + + + +
-60…+85 (G) - - - - - - + + + + + +
