VOLTAGE CONTROLLED PIEZOELECTRIC CRYSTAL OSCILLATOR GK283-UN-М
Voltage controlled piezoelectric crystal oscillator GK283-UN manufactured as per KPGF.433533.039 TU (DIL-8 package)
Basic parameters
Number and pin assignment

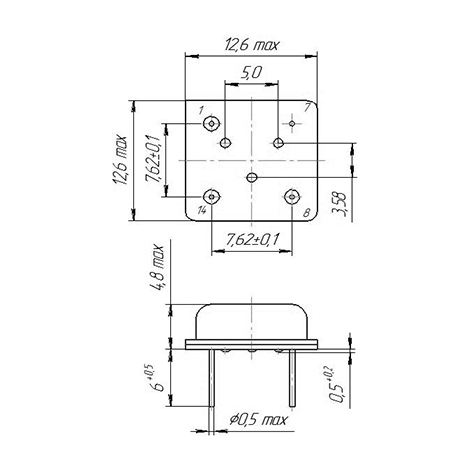

Overrall dimensions
Appearance
Model identification code: GK283-UN-M-7-15GR-А3-100М KPGF.433533.039 TU
| Oscillator type | GK283-UN-M |
| Frequency tuning | 7 |
| Calibration tolerance | 15 |
| Operating temperature range | G |
| Temperature stability | R |
| Load resistance | А |
| Spurious resonance rejection | 3 |
| Nominal frequency, MHz | 100М |
Electrical parameter
| Parameter | Value |
| Nominal frequency range, MHz | 2 - 2 300 |
| Output | Sine |
| Control voltage, V | 0…5; 0,5…4,5; |
| Supply voltage, V | 5 |
| Control nonlinearity, % (min) | ± 10 |
| Spectral density of phase noise, dB/Hz, max: | |
| 10 kHz offset | -130…-150 |
| 100 kHz offset | -140…-160 |
| Voltage coefficient ± 10 %, ×10-6, max | ± 3 |
| Supply current, mA, max | 40 |
| Load output voltage (amplitude) V, min | |
| Rн = 50 Ohm | 0,25 |
| Rн = 1 kOhm | 0,35 |
| Rн = 5 kOhm | 0,5 |
| Amplitude shift in temperature range, %, max | 10 |
Frequency tuning, х10-6
| ± 20 | (1) |
| ± 50 | (2) |
| ± 80 | (3) |
| ± 100 | (4) |
| ± 120 | (5) |
| ± 150 | (6) |
| ± 180 | (7) |
| ± 200 | (8) |
| ± 250 | (9) |
| ± 300 | (10) |
| ± 500 | (11) |
| ± 750 | (12) |
| ± 1000 | (13) |
| ± 1250 | (14) |
| ± 26000 | (15) |
Calibration tolerance, х10-6
| ± 5 | (11) |
| ± 7,5 | (12) |
| ± 10 | (13) |
| ± 15 | (14) |
| ± 20 | (15) |
| ± 30 | (16) |
| ± 50 | (20) |
Generators load
| 50 Ом | (А) |
| 1 кОм | (Б) |
| 5 кОм | (В) |
Spurious resonance rejection, dB
| Not rated | (1) |
| -20 | (2) |
| -30 | (3) |
| -40 | (4) |
Impact resistance to external factors action
| Parameter | Value |
| Mechanical impact resistance | М6 Group, GOST 25467 |
| Climatic impact resistance | UKhL 2.1 cat., GOST 25467 |
| Leak-proof construction | |
| γ-percentile time to failure at γ = 95 % under standard operating conditions (at ambient temperature of 85 °С) for min. 25 000 h within 15 years of service life | |
| γ-percentile storageability time – min. 15 years with γ = 95 % |
Notes:
Specifications can be modified to meet Customer’s specific requirements.
Temperature stability
| Operating temperature range, ˚С | Temperature stability , х10-6 | ||||||||||||
| ± 5 (Zh) |
± 10 (I) |
± 15 (K) |
± 20 (L) |
± 25 (M) |
± 30 (N) |
± 40 (P) |
± 50 (R) |
± 80 (R1) |
± 100 (S) |
± 150 (S1) |
± 200 (S2) |
||
| 0…+50 (L) | + | + | + | + | + | + | + | + | + | + | + | + | |
| 0…+70 (K) | + | + | + | + | + | + | + | + | + | + | + | + | |
| -10…+50 (M) | + | + | + | + | + | + | + | + | + | + | + | + | |
| -10…+60 (A) | + | + | + | + | + | + | + | + | + | + | + | + | |
| -10…+70 (N) | - | + | + | + | + | + | + | + | + | + | + | + | |
| -30…+60 (E) | - | - | + | + | + | + | + | + | + | + | + | + | |
| -30…+70 (P) | - | - | + | + | + | + | + | + | + | + | + | + | |
| -30…+85 (R) | - | - | + | + | + | + | + | + | + | + | + | + | |
| -40...+70 (B) | - | - | - | + | + | + | + | + | + | + | + | + | |
| -40…+85 (S) | - | - | - | + | + | + | + | + | + | + | + | + | |
| -50…+70 (V1) | - | - | - | - | + | + | + | + | + | + | + | + | |
| -60…+70 (V) | - | - | - | - | - | - | + | + | + | + | + | + | |
| -60…+85 (G) | - | - | - | - | - | - | + | + | + | + | + | + | |
Voltage controlled piezoelectric crystal oscillator
