PIEZOELECTRIC FILTERS (LITHIUM TANTALITE) FP3P6-782-MI5, FP3P6-782АB-MI5, FP3P6-782АBV-MI5
Piezoelectric filter manufactured as per KPGF.433561.072 TU (МI5 package)
Basic parameters
Number and pin assignment
Overrall dimensions

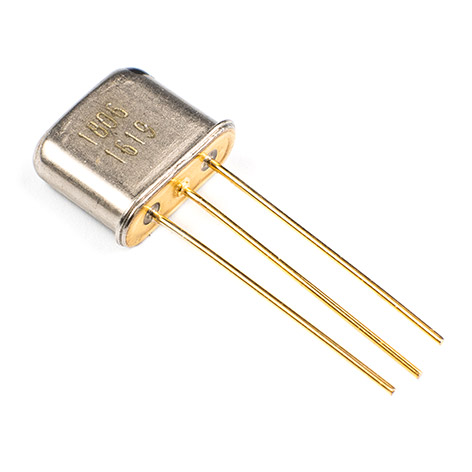

Appearance
Model identification code: FP3P6-782-MI5-50М-200-1B KPGF.433561.072 TU
| Type of filter | FP3P6-782 |
| Package type | MI5 |
| Nominal frequency, MHz | 50М |
| Nominal pass band width at 3 dB level, kHz | 200 |
| Order of mechanical oscillations | 1 |
| Operating temperature range | B |
Impact resistance
| Parameter | Value |
| Mechanical impact resistance | М6 Group, OST 11 206.810 |
| Climatic impact resistance | UKhL 2.1 or В 2.1 GOST 15150 |
| γ-percentile time to failure under standard operating conditions at γ = 95 % for min 25 000 h within 20 years of service life | |
| γ-percentile storageability time – min. 20 years |
Notes:
1. Filter FP3P6-782АB consists from two series connected FP3P6-782 filters, filter FP3P6-782АBV – from three series connected FP3P6-782 filters. 2. Filter parameters can be modified to meet Customer’s specific requirements.
Electrical parameter
| Nominal frequency range, kHz | Filter order | Order of mechanical oscillations | Operating temperature range, ˚С | Nominal pass band width at 3 dB level, kHz, |
Pass band ripple, dB, max. | Insertion loss dB, max. | Guaranteed attenuation, min. |
| FP3P6-782 | |||||||
| 25 000 - 60 000 incl. | 2 | 1 | -10…+60 (А) -30…+60 (B) -40…+70 (V) -60…+85 (D) |
0,25 - 2,5 | 1,0 | 4,0 | 40 |
| 60 000 - 160 000 | 1 (reverse mesostructure) | ||||||
| FP3P6-782AB | |||||||
| 25 000 - 60 000 incl. | 4 | 1 | -10…+60 (А) -30…+60 (B) -40…+70 (V) -60…+85 (D) |
0,25 - 2,0 | 1,0 | 5,0 | 60 |
| 60 000 - 160 000 | 1 (reverse mesostructure) | ||||||
| FP3P6-782ABV | |||||||
| 25 000 - 60 000 incl. | 6 | 1 | -10…+60 (А) -30…+60 (B) -40…+70 (V) -60…+85 (D) |
0,25 - 1,5 | 1,0 | 5,0 | 80 |
| 60 000 - 160 000 | 1 (reverse mesostructure) | ||||||
