PIEZOELECTRIC FILTERS (LANGASITE) FP3P6-743, FP3P6-743АB, FP3P6-743АBV

Piezoelectric filter manufactured as per KPGF.433561.058 TU, MI5 package

Basic parameters

Nominal frequency range, kHz 25 000 - 90 000
LWH, mm 7,8х3,2х6
Type of mounting THT (Through-Hole Technology)
Quality category QCD (Quality Control Dept)

Number and pin assignment

Left pad Output/input
Middle pad Grounding connection
Right pad Input/output

Item added to cart

Overrall dimensions

Appearance

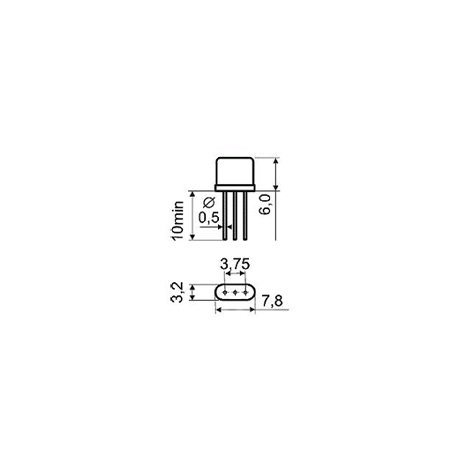

FP3P6-743, FP3P6-743АB, FP3P6-743АBV - Dimensions

Model identification code: FP3P6-743АBV-МI5-84М-80-B KPGF.433561.058 TU

Type of filter	FP3P6-743АBV
Package type	МI5
Nominal frequency, MHz	84М
Nominal pass band width at 3 dB level, kHz	80
All weather type (for Customer’s requirements)	В

Impact resistance

Parameter	Value
Mechanical impact resistance	М6 Group, OST 11 206.810
Climatic impact resistance	UKhL 2.1 or В 2.1 GOST 15150
γ-percentile time to failure under standard operating conditions at γ = 95 % for min 25 000 h within 20 years of service life

Notes:

1. Filter FP3P6-743АB consists from two series connected FP3P6-743 filters, filter FP3P6-743АBV – from three series connected FP3P6-743 filters. 2. Filter parameters can be modified to meet Customer’s specific requirements.

Electrical parameter

Nominal frequency range, kHz	Filter order	Order of mechanical oscillations	Operating temperature range, ˚С	Nominal pass band width at 3 dB level, kHz, х10^-6·fnom	Pass band ripple, dB, max.	Insertion loss dB, max.	Guaranteed attenuation, min.
FP3P6-743
25 000 - 90 000	2	1 (reverse mesostructure)	-60…+85 (D)	0,02 - 3,0	1,0	4,0	40
FP3P6-743AB
25 000 - 90 000	4	1 (reverse mesostructure)	-60…+85 (D)	0,02 - 3,0	1,0	5,0	60
FP3P6-743ABV
25 000 - 90 000	6	1 (reverse mesostructure)	-60…+85 (D)	0,02 - 3,0	1,0	6,0	80
