PIEZOELECTRIC FILTERS FP2P6-741, FP2P6-741АB

Piezoelectric filter manufactured as per KPGF.433541.052 TU, SMD7 package

Basic parameters

Nominal frequency range, MHz 18 - 90
LWH, mm 7,2х5,2х1,5
Type of mounting SMD (Surface mounted device / Surface mounting)
Quality category QCD (Quality Control Dept)

Number and pin assignment

1, 2, 4, 5 Grounding connection
3 Input/output
6 Output/input

Item added to cart

Overrall dimensions

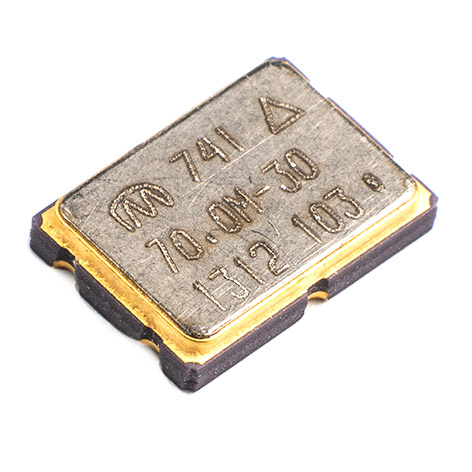

Appearance

Model identification code: FP2P6-741-20М-4-1B KPGF.433541.052 TU

Type of filter	FP2P6-741
Nominal frequency, MHz	20М
Nominal pass band width at 3 dB level, kHz	4
Order of mechanical oscillations	1
Operating temperature range	B

Impact resistance

Parameter	Value
Mechanical impact resistance	М6 Group, OST 11 206.810
Climatic impact resistance	UKhL 2.1 cat. GOST 15150
γ-percentile time to failure under standard operating conditions at γ = 95 % for min 20 000 h within 20 years of service life
γ-percentile storageability time – min. 20 years.

Notes:

1. Filter FP2P6-570АB consists from two series connected FP2P6-570 filters. 2. Filter parameters can be modified to meet Customer’s specific requirements.

Electrical parameter

Nominal frequency range, MHz	Filter order	Order of mechanical oscillations	Operating temperature range, ˚С	Nominal pass band width at 3 dB level, kHz, х10^-6·fnom	Pass band ripple, dB, max.	Insertion loss dB, max.	Guaranteed attenuation, min.
FP2P6-741
18 - 45	2	1	-10…+60 (A) -25…+55 (R) -30…+60 (B) -40…+70 (V) -60…+85 (D)	200 - 500 incl.	1,2	2,5	35
				500 - 1800 incl.	1,5	1,5
				1800 - 3000 incl.	1,8
				3000 - 3500 incl.	2,0
30 - 90		3		100 - 200 incl.	1,2	3,5
				200 - 600 incl.	1,5	2,5
				600 - 800 incl.	1,8
FP2P6-741АB
18 - 45	4	1	-10…+60 (A) -25…+55 (R) -30…+60 (B) -40…+70 (V) -60…+85 (D)	200 - 500 incl.	1,2	4,5	55
				500 - 1800 incl.	1,5	3,5
				1800 - 3000 incl.	1,8
				3000 - 3500 incl.	2,0
30 - 90		3		100 - 200 incl.	1,2	8,0
				200 - 600 incl.	1,5	6,0
				600 - 800 incl.	1,8
