PIEZOELECTRIC FILTERS FP2P6-720-D-MI5, FP2P6-720АB-D-MI5, FP2P6-720АBV-D-MI5

Piezoelectric filter manufactured as per KPGF.433541.042 TU-D3 (МI5 package)

Basic parameters

Nominal frequency range, MHz 25 - 28
LWH, mm 7,8х3,2х6
Type of mounting THT (Through-Hole Technology)
Quality category QCD (Quality Control Dept)

Number and pin assignment

Left pad Output/input
Middle pad Grounding connection
Right pad Input/output

Item added to cart

Overrall dimensions

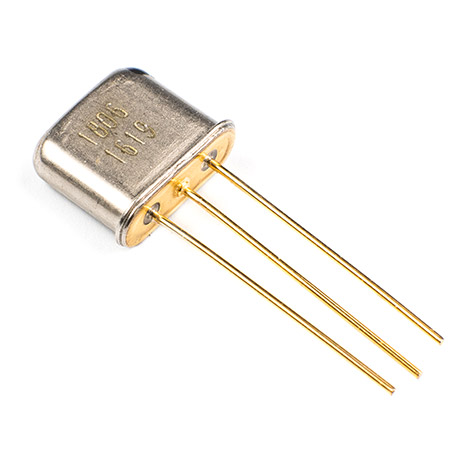

Appearance

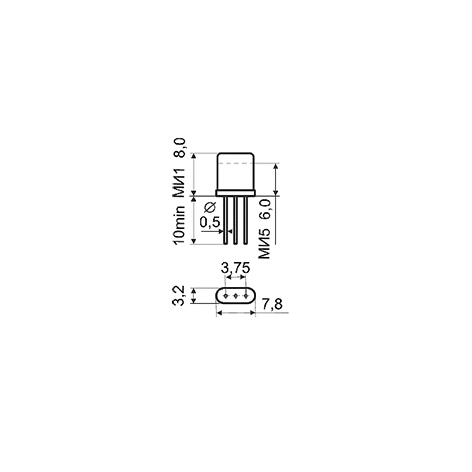

FP2P6-720-D-MI5, FP2P6-720АB-D-MI5, FP2P6-720АBV-D-MI5 - Dimensions

FP2P6-720-D-MI5, FP2P6-720АB-D-MI5, FP2P6-720АBV-D-MI5

Model identification code: FP2P6-720-D-МI5-20,24М-200-B KPGF.433541.042 TU-D3

Type of filter	FP2P6-720-D
Package type	MI5
Nominal frequency, MHz	20.24М
Nominal pass band width at 3 dB level, kHz	200
Operating temperature range	B

Impact resistance

Parameter	Value
Mechanical impact resistance	М6 Group, OST 11 206.810
Climatic impact resistance	UKhL 2.1 GOST 25467
Failure rate under normal climatic conditions within runtime of 20 000 h, greater than 10^-6
γ-percentile storageability time – min. 25 years

Notes:

1. Filter FP2P6-720АB-D consists from two series connected FP2P6-720-D filters, filter FP2P6-720АBV-D – from three series connected FP2P6-720-D filters. 2. Filter parameters can be modified to meet Customer’s specific requirements.

Electrical parameter

Nominal frequency range, MHz	Filter order	Order of mechanical oscillations	Operating temperature range, ˚С	Nominal pass band width at 3 dB level, kHz, х10^-6·fnom	Pass band ripple, dB, max.	Insertion loss dB, max.	Guaranteed attenuation, min.
FP2P6-720-D
25 - 28	2	1	-10…+60 (A) -25…+55 (R) -30…+60 (B) -40…+70 (V) -60…+85 (D)	5700 - 7700 incl.	2,5	3,0	35
FP2P6-720АB-D
25 - 28	4	1	-10…+60 (A) -25…+55 (R) -30…+60 (B) -40…+70 (V) -60…+85 (D)	4100 - 7700 incl.	2,5	6,0	55
FP2P6-720АBV-D
25 - 28	6	1	-10…+60 (A) -25…+55 (R) -30…+60 (B) -40…+70 (V) -60…+85 (D)	4100 - 7700 incl.	2,5	8,0	75
