PIEZOELECTRIC FILTERS FP2P6-570-МI5, FP2P6-570АB-МI5, FP2P6-570АBV-МI5

Piezoelectric filter manufactured as per KZhDG.433541.009 TU-D3 (МI5 package)

Basic parameters

Nominal frequency range, MHz 90 - 140
LWH, mm 7,8х3,2х6
Type of mounting THT (Through-Hole Technology)
Quality category QCD (Quality Control Dept)

Number and pin assignment

Left pad Output/input
Middle pad Grounding connection
Right pad Input/output

Item added to cart

Overrall dimensions

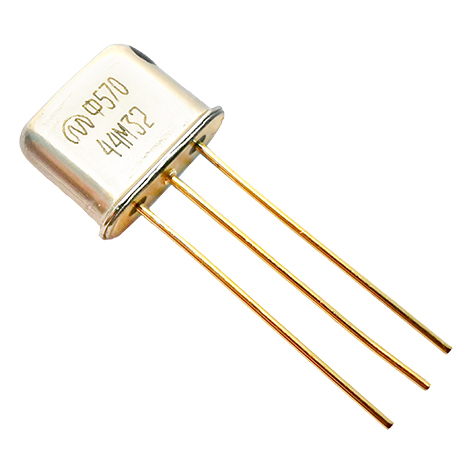

Appearance

FP2P6-570-МI5, FP2P6-570АB-МI5, FP2P6-570АBV-МI5 - Dimensions

FP2P6-570-МI5, FP2P6-570АB-МI5, FP2P6-570АBV-МI5

Model identification code: FP2P6-570-МI5-90,7М-15-5B KZhDG.433541.009 TU-D3

Type of filter	FP2P6-570
Package type	МI5
Nominal frequency, MHz	90.7М
Nominal pass band width at 3 dB level, kHz	15
Order of mechanical oscillations	5
Operating temperature range	B

Impact resistance

Parameter	Value
Mechanical impact resistance	М6 Group, OST 11 206.810
Climatic impact resistance	UKhL 2.1 GOST 25467
Failure rate under normal climatic conditions within runtime of 20 000 h, greater than 5x10^-7
γ-percentile storageability time – min. 25 years

Notes:

1. Filter FP2P6-570АB consists from two series connected FP2P6-570 filters, filter FP2P6-570АBV – from three series connected FP2P6-570 filters. 2. Filter parameters can be modified to meet Customer’s specific requirements.

Electrical parameter

Nominal frequency range, MHz	Filter order	Order of mechanical oscillations	Operating temperature range, ˚С	Nominal pass band width at 3 dB level, kHz, х10^-6·fnom	Pass band ripple, dB, max.	Insertion loss dB, max.	Guaranteed attenuation, min.
FP2P6-570
90 - 140	2	5	-10…+60 (A) -30…+60 (B)	120 - 220	2,0	2,0	35
FP2P6-570АB
90 - 140	4	5	-10…+60 (A) -30…+60 (B)	120 - 220	2,0	4,0	55
FP2P6-570АBV
90 - 140	6	5	-10…+60 (A) -30…+60 (B)	120 - 220	2,0	6,5	75
