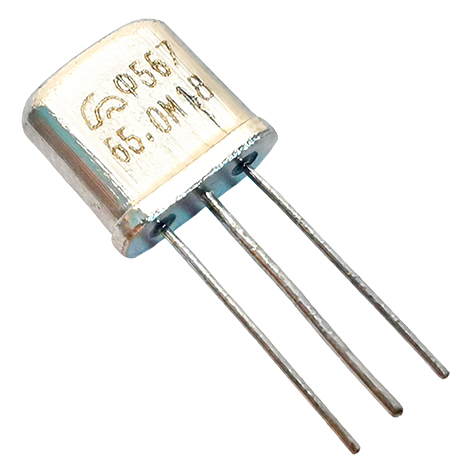

PIEZOELECTRIC FILTER FP2P6-567

PIEZOELECTRIC FILTER FP2P6-567

Piezoelectric filter manufactured as per KPGF.433541.008 TU, МN package

Basic parameters

  • Nominal frequency range, MHz 39 - 80
  • LWH, mm 7,2x2,8x7
  • Type of mounting THT (Through-Hole Technology)
  • Quality category QCD (Quality Control Dept)

Number and pin assignment

  • Left pad Output/input
  • Middle pad Grounding connection
  • Right pad Input/output
close

Item added to cart

Overrall dimensions

Appearance

FP2P6-567 - Dimensions
FP2P6-567
close FP2P6-567

Model identification code: FP2P6-567-62.5М-18
KPGF.433541.008 TU

Type of filter FP2P6-567
Nominal frequency, MHz 62.5М
Nominal pass band width at 3 dB level, kHz 18

Impact resistance

Parameter Value
Mechanical impact resistance М6 Group, OST 11 206.810
Climatic impact resistance UKhL 2.1 GOST 25467
Failure rate under normal climatic conditions within runtime of 30 000 h, greater than 5x10-7
γ-percentile storageability time – min. 25 years

Notes:

Filter parameters can be modified to meet Customer’s specific requirements.

Electrical parameter

Operating temperature range, ˚С Nominal frequency range, MHz Filter order Nominal pass band width at 3 dB level, kHz, х10-6·fnom Pass band ripple, dB, max. Insertion loss dB, max. Guaranteed attenuation, min.
-60…+85 39 - 80 2 7,5; 9,0; 12,0; 15,0; 18,0; 22,0; 24,0; 26,6 2,0 3,0 40
