PIEZOELECTRIC FILTER FP2P4-569, FP2P4-569-01, FP2P4-569-02
Piezoelectric filter, «Posol» glass-metal package, manufactured as per KZhDG.433541.013 TU
Basic parameters
Number and pin assignment

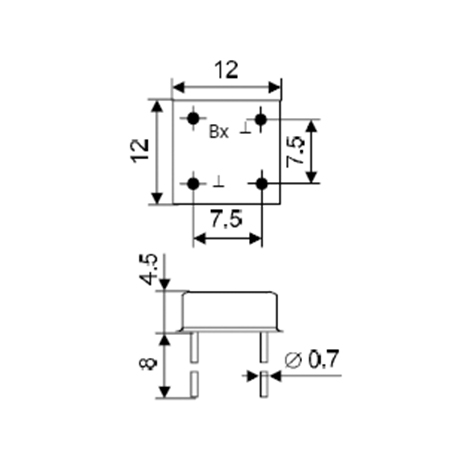

Overrall dimensions
Appearance
Model identification code: FP2P4-569-01 KZhDG.433541.013 TU
Impact resistance
| Parameter | Value |
| Mechanical impact resistance | М6 Group, OST 11 206.810 |
| Climatic impact resistance | UKhL 2.1 GOST 25467 |
| Failure rate under normal climatic conditions within runtime of 30 000 h, greater than 5x10-7 | |
| γ-percentile storageability time – min. 20 years. |
Notes:
Filter parameters can be modified to meet Customer’s specific requirements.
Electrical parameter
| Nominal frequency range, MHz | Filter order | Order of mechanical oscillations | Operating temperature range, ˚С | Nominal pass band width at 3 dB level, kHz | Pass band ripple, dB, max. | Insertion loss dB, max. | Guaranteed attenuation, min. |
| FP2P4-569 | |||||||
| 10,7 | 4 | 1 | -60…+85 | 5 | 0 | 2,0 | 40 |
| FP2P4-569-01 | |||||||
| 10,7 | 4 | 1 | -60…+85 | 8 | 0 | 2,0 | 40 |
| FP2P4-569-02 | |||||||
| 10,0 | 4 | 1 | -60…+85 | 7,5 | 0 | 2,0 | 40 |
Piezoelectric filter
